Weep Holes In Concrete Retaining Walls : Weep holes in the retaining wall help to drain the rainwater out of the retaining wall.

Weep Holes In Concrete Retaining Walls : Weep holes in the retaining wall help to drain the rainwater out of the retaining wall.. Figure 3 shows the cantilever retaining wall of pr chegg. From engineering point of view, weep hole is provided in these structures to relieve hydrostatic pressure or water pressure on the walls. When weep holes are added, water will not only leave the wall faster, but it will also enter the wall faster. This can lead to increased soil loads the wall has to carry. Weep holes are provided in earth retaining structures like retaining walls, underpasses, wing walls and other below ground drainage structures.

The first is it acts as a lubricant for stone and soils that may be locked into place by their friction with adjacent particles. Weep holes are for drainage of the back fill material. Thus weep holes reduce the thickness of the stem of the retaining wall. They are generally used in. Crushed stonte backfill to within 12 from top of wall and a minimum of 4 below drain pipe level backfill only 24 min.

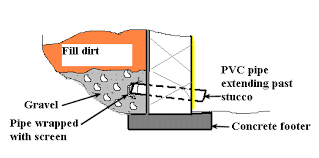

How Do I Drain Behind A Retaining Wall Retaining Wall Drainage Concrete Retaining Wall Diy Retaining Wall from i.pinimg.com

Crushed stonte backfill to within 12 from top of wall and a minimum of 4 below drain pipe level backfill only 24 min. Signs retaining wall may fail herstad landscaping. A build up of water has two negative consequences. It is installed in brick masonry to protect the air behind the wall from mildew, dry rot, and moisture which affects the life and performance of the building. From engineering point of view, weep hole is provided in these structures to relieve hydrostatic pressure or water pressure on the walls. Thus weep holes reduce the thickness of the stem of the retaining wall. If the drainage is not provided the soil becomes saturated and it exerts more pressure on the retaining wall than the normal unsaturated soil. Drainage planes and weep holes in brick walls team ering.

When weep holes are added, water will not only leave the wall faster, but it will also enter the wall faster.

Retaining wall weep holes functions, spacing and cover, hi guys in this article know about weep holes in retaining wall spacing. Aside from that interior crack, and possible weeping at top, the interior wall appears intact, not leaning in, etc. Drainage planes and weep holes in brick walls team ering. But there's no need to build a drainage trench behind the wall or to install weep holes in the face of the wall. Exit weep holes just above finished grade and slope holes at 1 per foot through cip gravity walls so water drains out of front of walls. The first is it acts as a lubricant for stone and soils that may be locked into place by their friction with adjacent particles. Below is a stone wall that failed due to improper drainage behind the wall. Suitable construction keys, drainage facilities, tile drains and weep holes as shown in the drawing. Dirt is coming out of retaining wall weep holes in patio. Jet filter system components are 100% made in the usa and are compliant with the buy american clause. These pipes are placed at the base of the retaining wall, buried in the soil. The purpose of weep holes is to avoid the build up water behind the wall. Installed through the front of any new or existing retaining wall, maintainable weep hole filters help prevent failure as they reduce water pressure and prevent soil loss.

Figure 3 shows the cantilever retaining wall of pr chegg. They are generally used in. Maintainable weep hole filters by jet filter system provide drainage and soil filtration. Masonry, concrete wall backfill and drainage. Weep holes are provided in masonry walls, retaining walls, underpasses, wing walls and other ground draining structure.

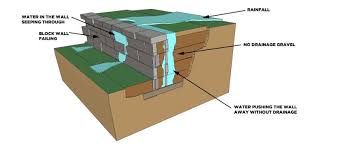

weep holes at the base of retaining walls are intended to bleed off excess moisture that collects behind the wall. Weep holes are for drainage of the back fill material. A build up of water has two negative consequences. The small round or square opening provided at base in retaining wall, culvert, bridge, external brick masonry work, underpasses, winning wall and ground level to remove hydrostatic pressure develop from water lodge on retaining wall is known as weep hole. This can lead to increased soil loads the wall has to carry. Below is a stone wall that failed due to improper drainage behind the wall. From engineering point of view, weep hole is provided in these structures to relieve hydrostatic pressure or water pressure on the walls. Weep holes are provided in masonry walls, retaining walls, underpasses, wing walls and other ground draining structure.

These holes should be regularly spaced in the horizontal direction.

Weep holes can allow considerable quantity of water to flow into the wall when it flows across the face of the wall. Weep holes are provided in earth retaining structures like retaining walls, underpasses, wing walls and other below ground drainage structures. Sometimes this means a pipe running through the wall from the soil to the other side,. Weep holes fashioned from terra cota pipe draining two failed portions of an old cyclopean masonry rock retaining wall in cincinnati. Weep holes are provided in masonry walls, retaining walls, underpasses, wing walls and other ground draining structure. Weep holes should be drilled through the wall. Retaining walls with a height greater than a few feet should also have weep holes that are regularly spaced in the vertical direction, forming a grid pattern. In addition the excess water can seep through cracks etc. If the drainage is not provided the soil becomes saturated and it exerts more pressure on the retaining wall than the normal unsaturated soil. Retaining wall weep holes functions, spacing and cover, hi guys in this article know about weep holes in retaining wall spacing. Maintainable weep hole filters are a revolutionary new solution to relieve water pressure from behind seawalls, bridge abutments, bulkheads and other retaining walls. Suitable construction keys, drainage facilities, tile drains and weep holes as shown in the drawing. In concrete block or hollow masonry foundation walls, weep holes are drilled along the bottom of the wall to provide an exit path for water trapped within the wall.

Weep holes are for drainage of the back fill material. These pipes are placed at the base of the retaining wall, buried in the soil. Most importantly, maintainable weep hole filters are always easily maintained, they. The combination of the ground sloping toward the wall, no drainage stone behind the wall, and no clear weep holes or drainage outlets lead to this wall failure. Dirt coming out of retaining wall drain openings (june 1, 2014) kathryn mundy said:

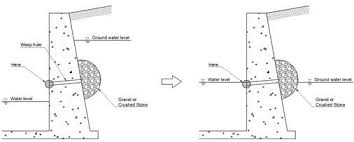

Concrete Masonry Cantilever Retaining Walls Ncma from ncma.org

The main function of providing weep holes in the retaining walls is to reduce the hydrostatic pressure which is developed in the retaining wall. Weep holes should be drilled through the wall. Weep holes in the exterior wall may do some good,out there, but not inside unless backfill is quite porous. Small holes drilled in consistent intervals throughout the wall will relieve the pressure by allowing water to escape through the holes. Very early in my dot bridge career, we had an older cip concrete bridge with gravity wall abutments, more than 20' high and almost 2' thick at the base. In concrete block or hollow masonry foundation walls, weep holes are drilled along the bottom of the wall to provide an exit path for water trapped within the wall. The density of soil is 18kn/m3. The purpose of weep holes is to avoid the build up water behind the wall.

Weep holes fashioned from terra cota pipe draining two failed portions of an old cyclopean masonry rock retaining wall in cincinnati.

In concrete block or hollow masonry foundation walls, weep holes are drilled along the bottom of the wall to provide an exit path for water trapped within the wall. In addition the excess water can seep through cracks etc. But there's no need to build a drainage trench behind the wall or to install weep holes in the face of the wall. It is installed in brick masonry to protect the air behind the wall from mildew, dry rot, and moisture which affects the life and performance of the building. In addition the excess water can seep through cracks etc. When weep holes are added, water will not only leave the wall faster, but it will also enter the wall faster. These holes should be regularly spaced in the horizontal direction. These pipes are placed at the base of the retaining wall, buried in the soil. Jet filter system components are 100% made in the usa and are compliant with the buy american clause. Dirt is coming out of retaining wall weep holes in patio. Sketch the drawings and detail as per the requirements. Most importantly, maintainable weep hole filters are always easily maintained, they. weep holes at the base of retaining walls are intended to bleed off excess moisture that collects behind the wall.

I had this home 15 years weep holes in concrete. Sometimes this means a pipe running through the wall from the soil to the other side,.
